Of course! Here is a comprehensive guide to the Python Tkinter API, designed to take you from the basics to more advanced concepts.

What is Tkinter?

Tkinter is Python's standard and de facto GUI (Graphical User Interface) library. It's a thin wrapper around the Tk GUI toolkit, which was originally developed for the Tcl language.

• Pros:
  • Built-in: Comes pre-installed with Python. No need to install anything.
  • Simple to Learn: It's relatively straightforward for creating basic to moderately complex interfaces.
  • Cross-Platform: Works on Windows, macOS, and Linux.
  • Stable and Mature: It's been around for decades and is very stable.
• Cons:
  • Looks Dated: The default widgets don't follow the modern design aesthetics of other toolkits.
  • Less Flexible: Can be cumbersome for creating highly custom or complex layouts.
  • Threading: Can be tricky to update the GUI from background threads.

Core Concepts of the Tkinter API

Before diving into widgets, you need to understand the fundamental building blocks of any Tkinter application.

The Tk Class: The Main Window

Every Tkinter application starts by creating a main window. This is the root of your application, the top-level window that contains everything else.

import tkinter as tk
# 1. Create the main window (the root)
root = tk.Tk()
# 2. Optional: Configure the window"My First App")
root.geometry("400x300") # Width x Height
# 3. Start the application's main event loop
# This line keeps the window open and responsive to user events (like clicks, key presses)
root.mainloop()

Widgets

Widgets are the components of your GUI (buttons, labels, text boxes, etc.). You create an instance of a widget class and place it inside a container (usually the main window or another widget).

Common Widgets:

• Label: Displays text or an image.
• Button: A clickable button.
• Entry: A single-line text entry field.
• Text: A multi-line text editor.
• Frame: A container widget used to group other widgets.
• Listbox: A list from which the user can select one or more items.
• Canvas: A generic area for drawing shapes, images, or complex layouts.
• Menu: A menu bar for your application.

Geometry Managers

Geometry managers determine how widgets are positioned within their parent container. Tkinter has three main ones:

• pack(): The simplest manager. It "packs" widgets one on top of the other or side-by-side. It's great for simple, vertical/horizontal layouts but can be inflexible for complex designs.

  label1 = tk.Label(root, text="Hello", fg="blue")
  label1.pack()
  label2 = tk.Label(root, text="World", fg="red")
  label2.pack()

• grid(): Arranges widgets in a grid of rows and columns. This is the most common and powerful manager for creating structured layouts. You specify the row and column for each widget.

  # Configure grid weights to make it responsive
  root.grid_columnconfigure(0, weight=1)
  entry1 = tk.Entry(root)
  entry1.grid(row=0, column=0, padx=5, pady=5, sticky="ew") # sticky="ew" stretches horizontally
  button1 = tk.Button(root, text="Submit")
  button1.grid(row=1, column=0, padx=5, pady=5, sticky="ew")

• place(): Gives you absolute control by placing widgets at a specific (x, y) coordinate. It's rarely used for the main layout as it's not responsive to window resizing. It's useful for things like overlaying a small button on an image.

  close_button = tk.Button(root, text="X")
  close_button.place(x=380, y=10) # Place 10px from the right and top

The Event Loop (mainloop())

This is the heart of a Tkinter application. root.mainloop() starts a loop that waits for events (like mouse clicks, key presses, or window closing) and calls the appropriate functions to handle them. Your application's code won't run past mainloop() until the window is closed.

Essential Widgets and Their Options

Here are the most common widgets and their key configuration options (called kwargs).

Putting It All Together: A Complete Example

Let's build a simple application that has:

• A label and an entry field for a name.
• A "Greet" button.
• A text area to display the greeting.

We'll use grid() for layout and StringVar to link the Entry widget to a variable.

import tkinter as tk
from tkinter import ttk # ttk provides themed widgets, often looking better
# --- 1. Create the main window ---
root = tk.Tk()"Greeter App")
root.geometry("400x350")
root.resizable(False, False) # Make window non-resizable
# --- 2. Create variables to link widgets ---
# StringVar is a special Tkinter variable that automatically updates the widget
# and vice-versa.
name_var = tk.StringVar()
# --- 3. Define functions to handle events ---
def greet_user():
    """Gets the name from the entry and displays a greeting in the text area."""
    name = name_var.get()
    if name:
        greeting_text = f"Hello, {name}! Welcome to the Tkinter API.\n"
        # Insert at the end of the text area
        text_output.insert(tk.END, greeting_text)
    else:
        text_output.insert(tk.END, "Please enter a name.\n")
# --- 4. Create and place widgets using grid ---
# Label for the name entry
name_label = ttk.Label(root, text="Enter your name:")
# sticky="w" aligns the widget to the west (left) side of its grid cell
name_label.grid(row=0, column=0, padx=10, pady=10, sticky="w")
# Entry field for the name
# textvariable=name_var links this entry to our StringVar
name_entry = ttk.Entry(root, textvariable=name_var, width=30)
name_entry.grid(row=0, column=1, padx=10, pady=10, sticky="w")
# Greet button
# command=greet_user links the button's click event to our function
greet_button = ttk.Button(root, text="Greet", command=greet_user)
# columnspan=2 makes the button span across two columns
greet_button.grid(row=1, column=0, columnspan=2, padx=10, pady=5, sticky="ew")
# Label for the output text area
output_label = ttk.Label(root, text="Greeting Log:")
output_label.grid(row=2, column=0, padx=10, pady=(15, 5), sticky="w")
# Text area for output
text_output = tk.Text(root, height=8, width=40, wrap=tk.WORD, state="normal")
text_output.grid(row=3, column=0, columnspan=2, padx=10, pady=5, sticky="nsew")
# Add a scrollbar to the text area
scrollbar = ttk.Scrollbar(root, orient="vertical", command=text_output.yview)
scrollbar.grid(row=3, column=2, sticky="ns")
text_output['yscrollcommand'] = scrollbar.set
# Configure grid weights for resizing behavior
root.grid_columnconfigure(0, weight=1)
root.grid_rowconfigure(3, weight=1) # Allow the text area to expand vertically
# --- 5. Start the event loop ---
root.mainloop()

Advanced Topics

Once you're comfortable with the basics, you can explore these more advanced features:

• ttk (Themed Tkinter): A modernized version of Tkinter. Use from tkinter import ttk and replace tk.Widget with ttk.Widget for widgets that look better on your operating system. It also provides more advanced widgets like ttk.Treeview and ttk.Notebook.

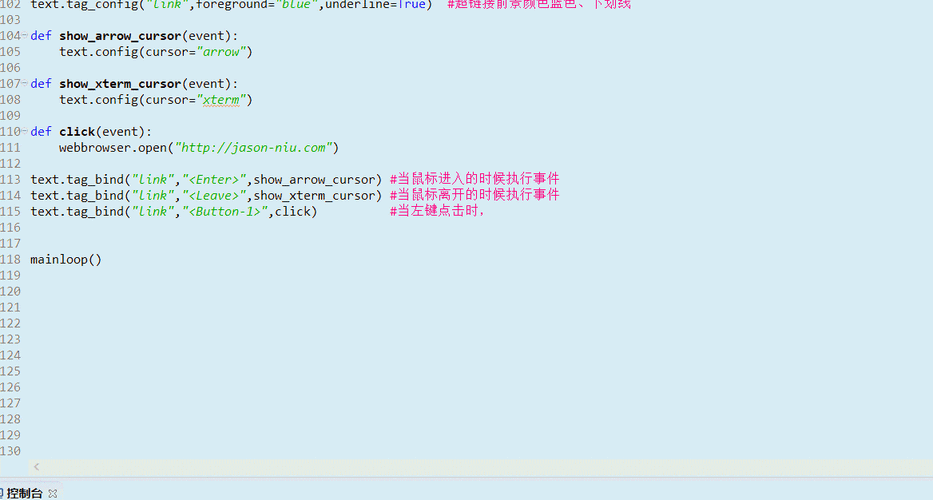

• Event Binding: You can bind any event to any widget, not just the default button click. For example, binding a key press or a mouse movement.

  def on_key_press(event):
      print(f"A key was pressed: {event.keysym}")
  root.bind("<KeyPress>", on_key_press) # Bind to the main window

• Custom Dialogs: Create your own windows for dialogs like "Open File" or "Save As" using tk.filedialog and tk.messagebox.

• Canvas Drawing: Use the Canvas widget to draw shapes, lines, and even create custom-drawn widgets.

• Threading: For long-running tasks (like downloading a file), you should not run them in the main thread, as it will freeze the GUI. Use Python's threading module and update the GUI from the main thread using root.after().

Official Resources

• Tkinter Documentation: The official Python documentation for Tkinter is the ultimate source of truth. It's detailed and lists every widget and option.
  • Python Tkinter Documentation
• Effbot's Tkinter Reference: A classic, community-loved reference that is still incredibly useful for understanding how widgets work.
  • Effbot's Tkinter Reference

This guide should give you a solid foundation to start building powerful and interactive GUIs with Python and Tkinter. Happy coding
