What is a Kernel? The Intuition

Think of a kernel as a small, sliding window that moves over an image. At each position, the kernel performs a mathematical operation (usually a weighted sum) on the pixels underneath it. The result of that operation becomes the new value for the pixel at the kernel's center position.

This process is called convolution.

Analogy: A Stencil Imagine you have a stencil (the kernel) with different numbers written in its holes. You place the stencil over a section of a grid (the image). For each hole, you multiply the number on the stencil by the number on the grid underneath it. Then, you add up all these products. The final sum is the value you write on a new grid at the position where the stencil was placed.

The Mathematical Definition (Convolution)

Let the image be represented by a 2D function I(x, y) and the kernel by a 2D function K(i, j). The convolution operation at a point (x, y) on the output image O(x, y) is calculated as:

O(x, y) = Σ Σ I(x + i, y + j) * K(i, j)

Where the summation is over all the elements of the kernel.

• I(x + i, y + j): This is the pixel value from the input image at the location offset by the kernel's coordinates.
• K(i, j): This is the weight from the kernel at position (i, j).
• The result is placed at O(x, y) in the output image.

Key Properties of a Kernel:

• Size: Always an odd number (e.g., 3x3, 5x5, 7x7). This is crucial because it ensures there is a single, central pixel, which simplifies the handling of the output image's coordinates.
• Values: The numbers inside the kernel determine the effect. These can be positive, negative, or zero.
  • Positive values: Emphasize the corresponding pixels.
  • Negative values: De-emphasize or subtract the corresponding pixels.
  • Zero values: Ignore the corresponding pixels.

Common Kernels and Their Effects in OpenCV

The most common way to apply a kernel in OpenCV is with the cv2.filter2D() function.

# Syntax
dst = cv2.filter2D(src, ddepth, kernel[, dst[, anchor[, delta[, borderType]]]])

• src: Input image.
• ddepth: The desired depth of the output image. -1 means the same as the source.
• kernel: The kernel matrix (a NumPy array).

Let's see some examples.

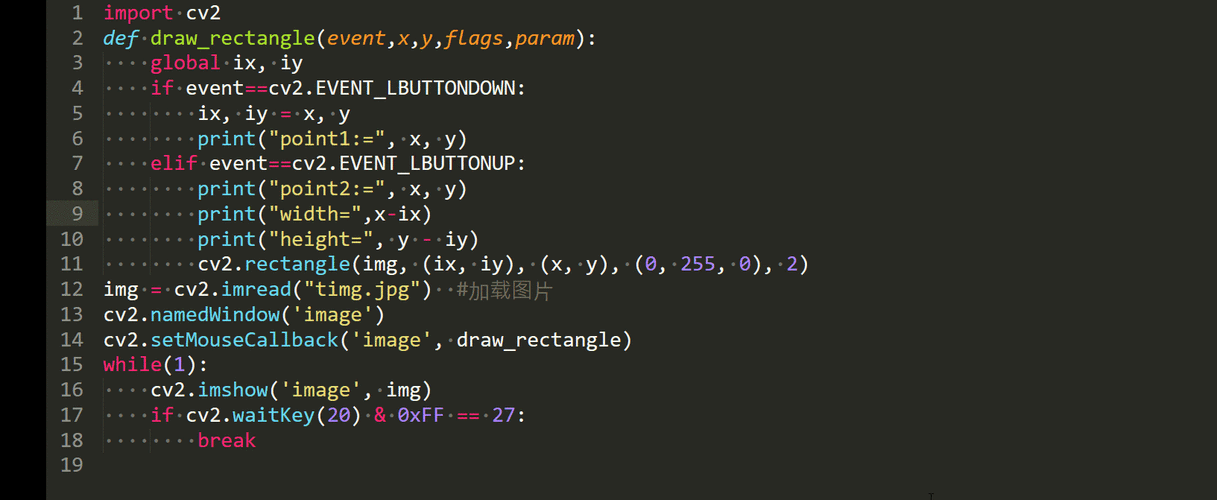

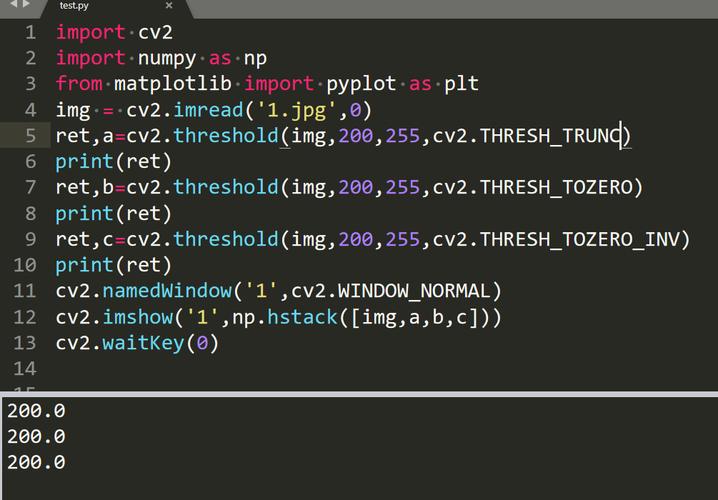

Setup: Import Libraries and Load an Image

import cv2
import numpy as np
import matplotlib.pyplot as plt
# Load an image (convert to grayscale for simplicity)
# Make sure 'lena.jpg' is in the same directory or provide the full path
try:
    image_path = 'lena.jpg'
    img = cv2.imread(image_path, cv2.IMREAD_GRAYSCALE)
    if img is None:
        raise FileNotFoundError(f"Could not read the image: {image_path}. Please check the path.")
except FileNotFoundError as e:
    print(e)
    # Create a dummy image if the file is not found
    img = np.zeros((300, 300), dtype=np.uint8)
    cv2.circle(img, (150, 150), 100, 255, -1)
    cv2.rectangle(img, (50, 50), (100, 100), 100, -1)
# Display function using matplotlib
def display_images(original, processed, title_processed):
    plt.figure(figsize=(12, 6))
    plt.subplot(1, 2, 1)
    plt.imshow(original, cmap='gray')
    plt.title('Original Image')
    plt.axis('off')
    plt.subplot(1, 2, 2)
    plt.imshow(processed, cmap='gray')
    plt.title(title_processed)
    plt.axis('off')
    plt.tight_layout()
    plt.show()

Example 1: Identity Kernel (No Change)

This kernel simply returns the original pixel value. It's useful for testing or as a base for other operations.

Kernel:

[ 0  0  0 ]
[ 0  1  0 ]
[ 0  0  0 ]

Effect: The image remains unchanged.

identity_kernel = np.array([
    [0, 0, 0],
    [0, 1, 0],
    [0, 0, 0]
])
identity_result = cv2.filter2D(img, -1, identity_kernel)
display_images(img, identity_result, "Identity Kernel (No Change)")

Example 2: Blur / Box Filter Kernel

This kernel averages the pixel values in its neighborhood, smoothing the image and reducing noise.

Kernel (3x3 Box Filter):

[1/9 1/9 1/9]
[1/9 1/9 1/9]
[1/9 1/9 1/9]

The sum of the weights is 1, which prevents the image from getting brighter or darker.

Effect: Blurring, noise reduction.

# Note: The kernel values should sum to 1 to maintain brightness
box_kernel = np.ones((3, 3), np.float32) / 9.0
box_blur_result = cv2.filter2D(img, -1, box_kernel)
display_images(img, box_blur_result, "Box Blur Kernel")

Example 3: Sharpening Kernel

This kernel enhances the difference between a pixel and its neighbors, making edges and details appear sharper.

Kernel:

[ 0 -1  0 ]
[-1  5 -1 ]
[ 0 -1  0 ]

The center value is high (positive), and the neighbors are negative. This amplifies the center pixel relative to its surroundings.

Effect: Sharpening the image.

sharpen_kernel = np.array([
    [ 0, -1,  0],
    [-1,  5, -1],
    [ 0, -1,  0]
])
sharpened_result = cv2.filter2D(img, -1, sharpen_kernel)
display_images(img, sharpened_result, "Sharpening Kernel")

Example 4: Edge Detection (Laplacian Kernel)

This kernel is designed to highlight regions of rapid intensity change, which correspond to edges.

Kernel (Laplacian):

[ 0  1  0 ]
[ 1 -4  1 ]
[ 0  1  0 ]

The sum of the weights is 0. This means it's sensitive to changes, not absolute values, resulting in a "sketch" of the edges.

Effect: Finds edges in the image.

laplacian_kernel = np.array([
    [0,  1, 0],
    [1, -4, 1],
    [0,  1, 0]
])
# The result will have negative values, so we take the absolute value
# and convert back to 8-bit unsigned integer for display.
edge_detected_result = cv2.filter2D(img, cv2.CV_64F, laplacian_kernel) # Use 64F to handle negative values
edge_detected_result = np.absolute(edge_detected_result) # Take absolute value
edge_detected_result = np.uint8(edge_detected_result) # Convert back to 8-bit
display_images(img, edge_detected_result, "Laplacian Edge Detection")

Specialized Kernel Functions in OpenCV

While cv2.filter2D is the general-purpose function, OpenCV also provides highly optimized, specialized functions for common kernels. These are usually faster and have better default behaviors (like handling image borders).
